KHK Spiral Miter MMS3-30L Gleason MMS3-30L 1 piece

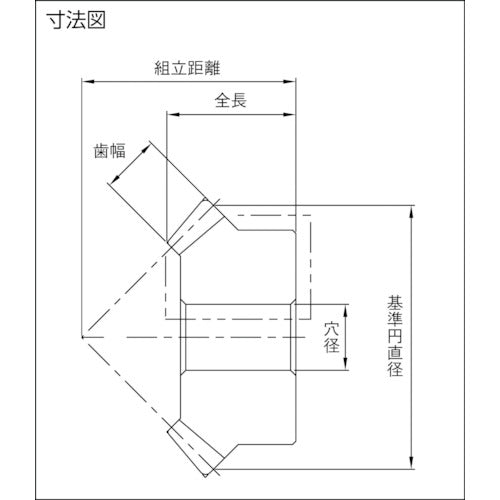

Catalog number: MMS3-30L Features: ●This product is made of SCM415 material and only the tooth surface is hardened, so additional processing can be freely performed on the parts other than the teeth. Applications: ●Power transmission gears. Specifications: ● Module: 3 ● Number of teeth: 30 ● Reference circle diameter (mm): φ90 ● Assembly distance (mm): 75 ● Hole diameter (mm): φ20 ● Total length (mm): 45.25 ● Tooth width (mm): 20 ● Shape: B3 ● Twist angle: -35 ● Tooth tip circle diameter (mm): φ93.61 ● Twist direction: L ● Boss diameter (mm): φ70 ● Boss length (mm): 20 ● Hole length (mm): 40 ● Tooth number ratio: 1 ● Pressure surface diameter: 53.43 ● Gear precision: JIS B1704: 1978: Class 4 ● Tooth shape: Gleason ● Pressure angle: 20° ● Heat treatment: Carburized hardening (tooth part only) ● Surface treatment: Blackening ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Additional machining possible: Additional machining possible for the carburized part Material/Finish: ● SCM415 Note: This is a single item, not a set.
