KHK Spiral Miter MMS4-25L Gleason MMS4-25L 1 piece

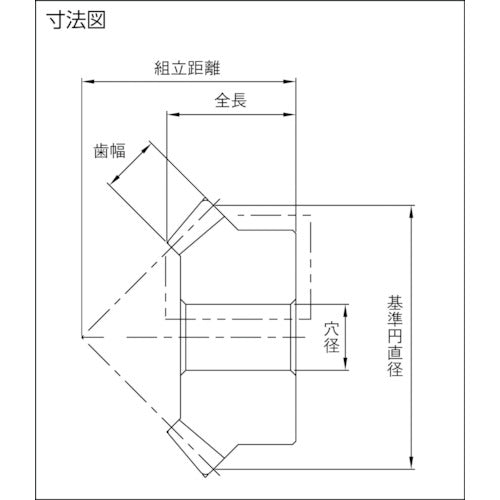

Catalog number: MMS4-25L Features: ●This product is made of SCM415 material and only the tooth surface is hardened, so additional processing can be freely performed on parts other than the teeth. Applications: ●Power transmission gears. Specifications: ● Module: 4 ● Number of teeth: 25 ● Reference circle diameter (mm): φ100 ● Assembly distance (mm): 80 ● Hole diameter (mm): φ25 ● Total length (mm): 49.14 ● Tooth width (mm): 25 ● Shape: B3 ● Twist angle: -35 ● Tooth tip circle diameter (mm): φ104.7 ● Twist direction: L ● Boss diameter (mm): φ85 ● Boss length (mm): 22.5 ● Hole length (mm): 44 ● Tooth number ratio: 1 ● Pressure surface diameter: 57.29 ● Gear precision: JIS B1704: 1978: Class 4 ● Tooth shape: Gleason ● Pressure angle: 20° ● Heat treatment: Carburized hardening (tooth part only) ● Surface treatment: Blackening ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Additional machining possible: Additional machining possible for the carburized part Material/Finish: ● SCM415 Note: This is a single item, not a set.
