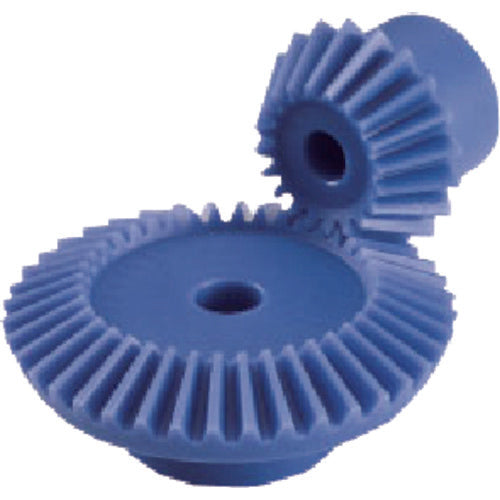

KHK Plastic Bevel Gear PB1.5-4515 PB1.5-4515 1 pc

Catalog number: PB1.5-4515 Features: ●Lightweight product made of MC nylon. ●Can be used without lubrication. Uses: ● Gears for power transmission Specifications: ● Tooth ratio: 1/3 ● Module: 1.5 ● Number of teeth: 45 ● Hole diameter (mm): φ10 ● Overall length (mm): 20.44 ● Boss diameter (mm): 40 ● Boss length (mm): 11 ● Tooth width b (mm): 10 ● Assembly distance A (mm): 28 ● Reference circle diameter d (mm): 67.5 ● Tooth tip circle diameter: 68.06 ● Hole length: 17 ● Pressure surface diameter: 46.58 ● Assembly distance A (mm): 28 ● Tooth width b (mm): 10 ● Gear precision: JIS B 1704: 1978: Class 4 ● Tooth surface hardness: (115-120HRR) ● Tooth shape: Gleason ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole ● Heat treatment: None ● Twist angle: 0 ● Additional processing possible: Yes Material/Finish: ●MC901 Note: ●This is sold individually and not as a set.
