KHK Plastic Miter Gear PM1.5-25 PM1.5-25 1 piece

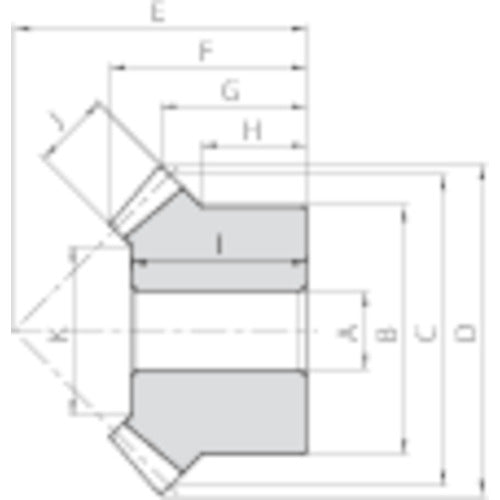

Catalog number: PM1.5-25 Features: *Lightweight product made of MC nylon. *Can be used without lubrication. Applications: *Power transmission gears. Specifications: ● Module: 1.5 ● Number of teeth: 25 ● Reference circle diameter (mm): φ37.5 ● Assembly distance (mm): 34 ● Hole diameter (mm): φ8 ● Total length (mm): 22.25 ● Tooth width (mm): 9 ● Shape: B3 ● Tooth tip circle diameter (mm): φ39.62 ● Boss diameter (mm): φ30 ● Boss length (mm): 11.5 ● Hole length (mm): 19 ● Tooth ratio: 1 ● Gear precision: JIS B 1704: 1978: equivalent to grade 4 ● Tooth surface hardness: (115-120HRR) ● Tooth shape: Gleason ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole ● Material: MC901 ● Additional processing possible: Yes Material/Finish: ● MC901 Note: ●The material expands and contracts depending on the temperature and humidity, and the dimensions of the hole diameter (H8 at the time of manufacture), tooth tip diameter, backlash, etc. will change. ●Please be careful about safety when processing. ●This is sold as a single piece, not as a set.
