KHK Plastic Miter Gear PM3-20 PM3-20 1 piece

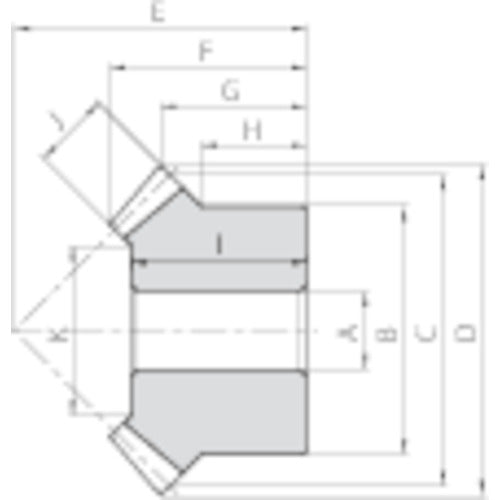

Catalog number: PM3-20 Features: *Lightweight product made of MC nylon. *Can be used without lubrication. Applications: *Power transmission gears. Specifications: ●Module: 3 ●Number of teeth: 20 ●Pitch circle diameter (mm): φ60 ●Assembly distance (mm): 58 ●Hole diameter (mm): φ14 ●Total length (mm): 39.84 ●Tooth width (mm): 15 ●Shape: B3 ●Tooth tip circle diameter (mm): φ64.24 ●Boss diameter (mm): φ50 ●Boss length (mm): 23 ●Hole length (mm): 35 ●Tooth ratio: 1 ●Gear precision: JIS B 1704: 1978: Class 4 ●Tooth surface hardness: (115-120HRR) ●Tooth shape: Gleason ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Material: MC901 ●Can additional processing be performed: Yes Material/Finish: ●MC901 Note: ●The material will expand and contract depending on the temperature and humidity, causing dimensions such as the hole diameter (H8 at the time of manufacture), tooth tip circle diameter, and backlash to change. ●Please be careful about safety when processing. ●This is sold as a single item, not as a set.
