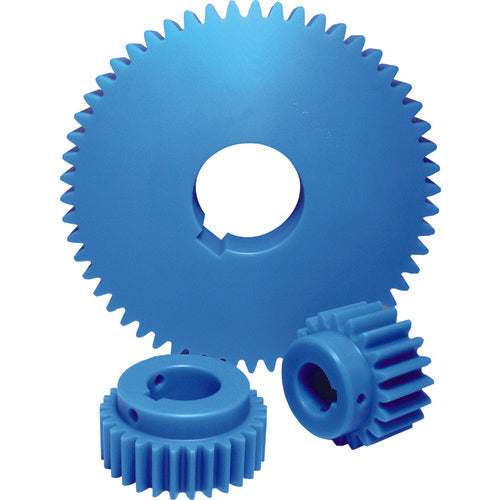

KHK Plastic Spur Gear PS1-55 PS1-55 1 piece

Catalog number: PS1-55 Features: ●Made of MC nylon that can be used without lubrication, it is ideal for food machinery, etc. ●Ideal for food machinery, etc. Applications: ●Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 55 ●Shape: S1 ●Reference circle diameter (mm): φ55 ●Tooth width (mm): 10 ●Hole diameter (mm): φ10 ●Total length (mm): 20 ●Boss diameter (mm): φ35 ●Tooth tip circle diameter (mm): φ57 ●Boss length (mm): 10 ●Gear precision: JIS B 1702-1 N9 grade ●Tooth surface hardness: (115-120HRR) ●Tooth shape: Straight teeth ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole ●Heat treatment: None ●Twist angle: ●Additional machining possible: Yes Material/Finish: ●MC901 Note: ●Sold individually, not as a set.
