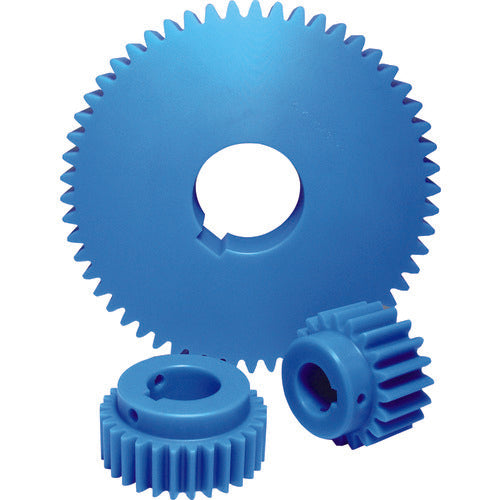

KHK Plastic Spur Gear PS2.5-26J12 PS2.5-26J12 1 piece

Catalog number: PS2.5-26J12 Features: * MC nylon spur gears that can be used without lubrication. Ideal for food machinery, etc. Applications: * Power transmission gears. Specifications: ● Module: 2.5 ● Number of teeth: 26 ● Shape: S1K ● Reference circle diameter (mm): 65 ● Tooth width (mm): 25 ● Hole diameter (mm): 12 ● Tooth tip circle diameter: 70 ● Total length (mm): 37 ● Boss diameter (mm): 55 ● Boss length (mm): 12 ● Tap: M4 ● Key groove: 4 x 1.8 ● Screw hole position: 6 ● Gear precision: JIS B 1702-1 N9 grade equivalent ● Tooth surface hardness: (115-120HRR) ● Tooth shape: Straight teeth ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Tooth cutting reference surface: Hole ● Heat treatment: None ● Twist angle ● Additional processing possible: No Material / Finish: ● MC901 Note: ● This product is a contracted product, so the manufacturer will complete it within 3 days after ordering. (Logistics is not included) ● This product cannot be canceled because it will be processed immediately after ordering. ●This is a single item sold, not a set.
