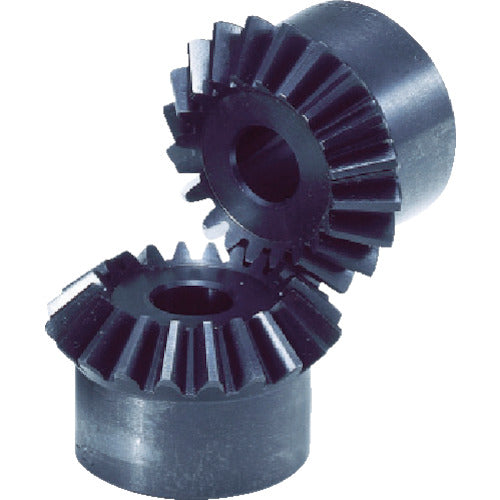

KHK Miter MM2.5-20 MM2.5-20 1 pc

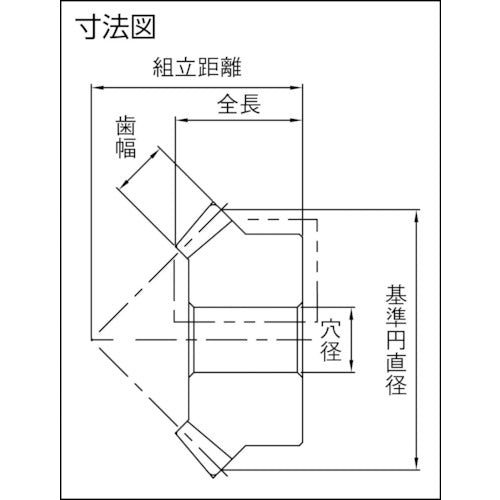

Catalog number: MM2.5-20 Features: ● Superior strength and wear resistance compared to SM miter gears. ● Finished product that can be used without additional processing. Applications: ● Power transmission gears. Specifications: ●Module: 2.5 ●Number of teeth: 20 ●Pitch diameter (mm): φ50 ●Assembly distance (mm): 45 ●Hole diameter (mm): φ15 ●Total length (mm): 28.89 ●Tooth width (mm): 11 ●Shape: B3 ●Tooth tip diameter (mm): φ53.54 ●Boss diameter (mm): φ42 ●Boss length (mm): 16 ●Hole length (mm): 26 ●Tooth ratio: 1 ●Gear precision: JIS B1704: 1978: Class 4 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: Carburized and hardened (tooth only) ●Tooth ratio: 1 ●Tooth surface hardness: 55-60HRC ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional machining possible: Carbon-proof parts can be additionally machined Material/Finish: ●SCM415 Note: ●This is sold individually and not as a set.
