KHK Miter MM2.5-30 MM2.5-30 1 piece

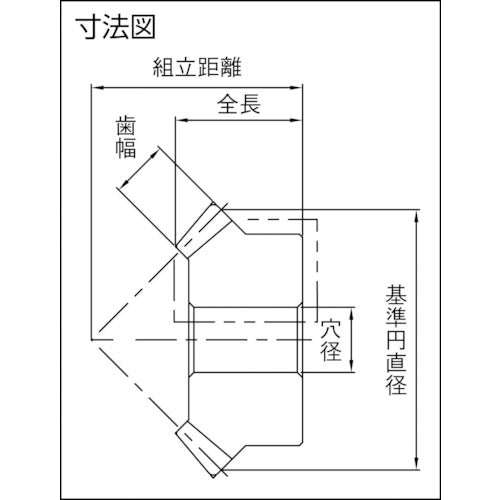

Catalog number: MM2.5-30 Features: ● Superior strength and wear resistance compared to SM miter gears. ● Finished product that can be used without additional processing. Applications: ● Power transmission gears. Specifications: ●Module: 2.5 ●Number of teeth: 30 ●Pitch circle diameter (mm): φ75 ●Assembly distance (mm): 62 ●Hole diameter (mm): φ16 ●Total length (mm): 36.28 ●Tooth width (mm): 15 ●Shape: B3 ●Tooth tip circle diameter (mm): φ78.54 ●Boss diameter (mm): φ60 ●Boss length (mm): 17 ●Hole length (mm): 32 ●Tooth ratio: 1 ●Gear precision: JIS B1704: 1978: Class 4 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: Carburized and hardened (tooth only) ●Tooth ratio: 1 ●Tooth surface hardness: 55-60HRC ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional machining possible: Carbon-proof parts can be additionally machined Material/Finish: ●SCM415 Note: ●This is sold individually and not as a set.
