KHK Miter SM1.5-30 SM1.5-30 1 pc

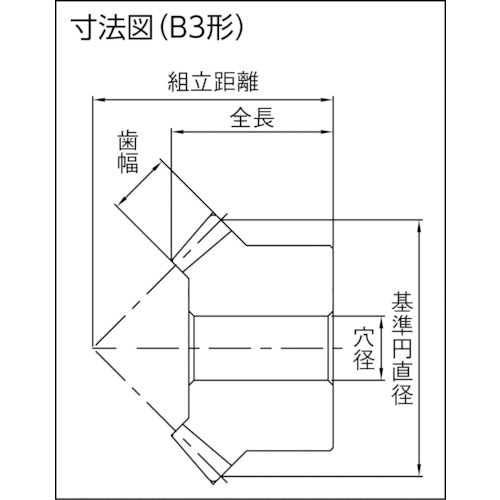

Catalog number: SM1.5-30 Features: ● Popular straight miter gear. Applications: ● Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 30 ●Pitch circle diameter (mm): φ45 ●Assembly distance (mm): 43 ●Hole diameter (mm): φ10 ●Total length (mm): 28.24 ●Tooth width (mm): 10 ●Shape: B3 ●Tooth tip circle diameter (mm): φ47.12 ●Boss diameter (mm): φ36 ●Boss length (mm): 16 ●Hole length (mm): 25 ●Tooth ratio: 1 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
