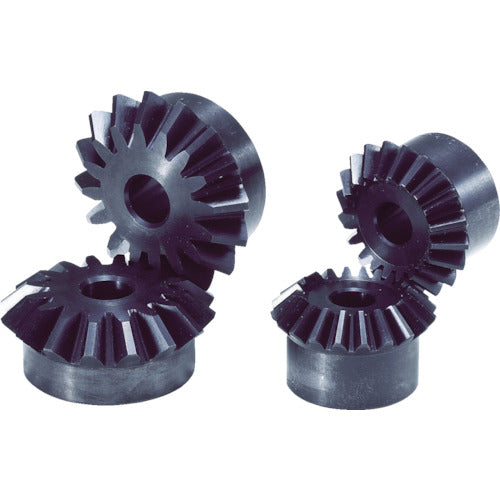

KHK Miter SM3.5-30 SM3.5-30 1 piece

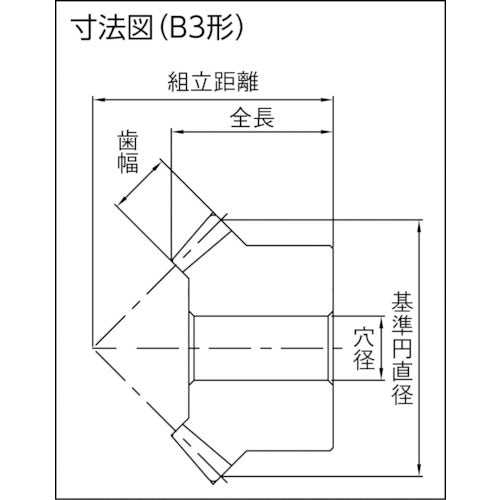

Catalog number: SM3.5-30 Features: ● Popular straight miter gear. Applications: ● Power transmission gears. Specifications: ●Module: 3.5 ●Number of teeth: 30 ●Pitch diameter (mm): φ105 ●Assembly distance (mm): 85 ●Hole diameter (mm): φ25 ●Total length (mm): 49.66 ●Tooth width (mm): 22 ●Shape: B3 ●Tooth tip diameter (mm): φ109.95 ●Boss diameter (mm): φ90 ●Boss length (mm): 25 ●Hole length (mm): 45 ●Tooth ratio: 1 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
