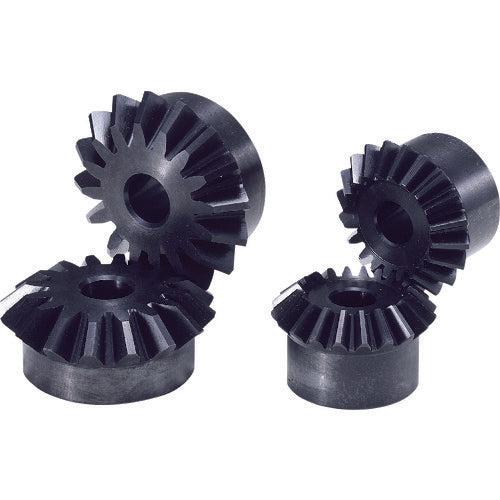

KHK Miter SM6-20 SM6-20 1 piece

Catalog number: SM6-20 Features: ● A popular straight miter gear that is used by many customers. Applications: ● Power transmission gears. Specifications: ●Module: 6 ●Number of teeth: 20 ●Pitch circle diameter (mm): φ120 ●Assembly distance (mm): 104 ●Hole diameter (mm): φ28 ●Total length (mm): 67.67 ●Tooth width (mm): 30 ●Shape: B3 ●Tooth tip circle diameter (mm): φ128.48 ●Boss diameter (mm): φ100 ●Boss length (mm): 34 ●Hole length (mm): 60 ●Tooth ratio: 1 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth surface hardness: (194HB or less) ●Tooth shape: Gleason ●Surface treatment: Blackening ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Heat treatment: None ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not as a set.
