KHK Double-sided processed rack SRF3-500 SRF3-500 1 pc

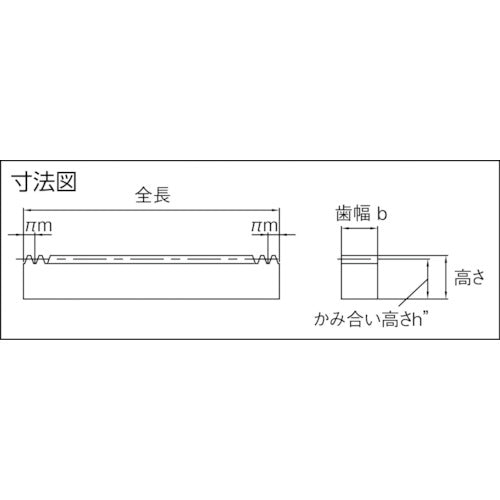

Catalogue number: SRF3-500 Features: ●A wide variety of modules and lengths are available, making it versatile at a low price. Applications: ●Power transmission gears. Specifications: ●Module: 3 ●Total length (mm): 499.51 ●Effective number of teeth: 53 ●Meshing height h” (mm): 32 ●Tooth width b (mm): 30 ●Height (mm): 35 ●Shape: RF ●Meshing height (mm): 32 ●Tooth width (mm): 30 ●Gear precision: KHKR001: Grade 4 ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (95HRB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Bottom surface ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
