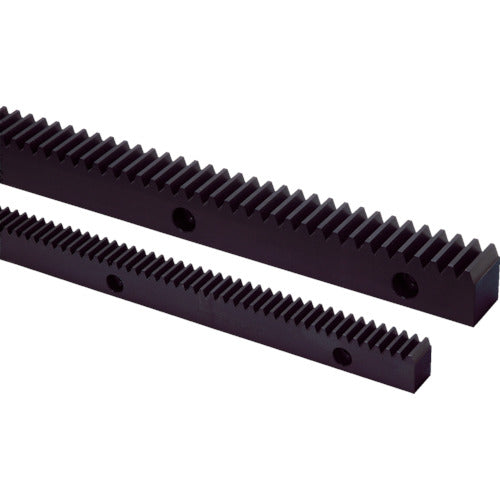

KHK Mounting Hole Processing Rack SRFD4-2000 Straight Teeth SRFD4-2000 1 pc

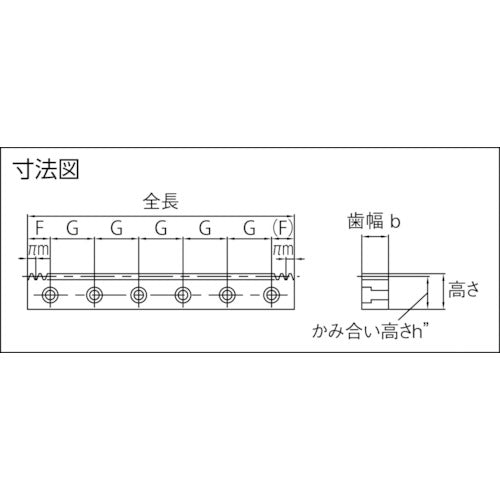

Catalogue number: SRFD4-2000 Features: ●A wide variety of modules and lengths are available, making it versatile at a low price. ●A finished product with mounting holes. Applications: ●Power transmission gears. Specifications: ●Module: 4 ●Total length (mm): 2048.31 ●Effective number of teeth: 163 ●Meshing height h” (mm): 41 ●Tooth width b (mm): 40 ●Height (mm): 45 ●Shape: RD ●Meshing height (mm): 41 ●Tooth width (mm): 40 ●Gear precision: KHKR001: Grade 4 ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (95HRB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Bottom surface ●Additional machining possible: Yes Material/Finish: ●S45C Note: ●This is sold individually, not as a set.
