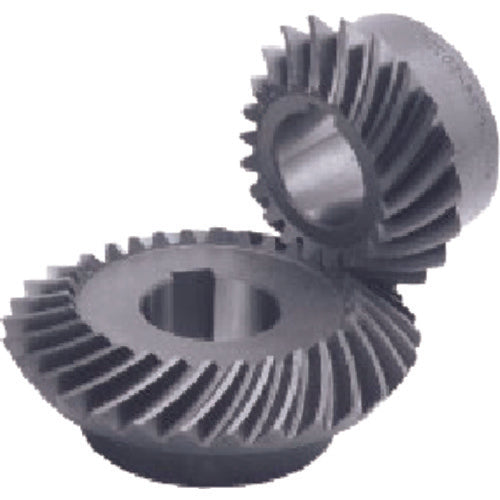

KHK Complete Spiral Bevel Gear MBSA2.5-3020R MBSA2.5-3020R 1 pc

Catalogue number: MBSA2.5-3020R Features: ● A finished product that can be used without additional processing. ● Excellent strength and wear resistance. Applications: ● Power transmission gears Specifications: ● Tooth ratio: 1/1.5 ● Module: 2.5 ● Number of teeth: 30 ● Hole diameter (mm): φ22 ● Overall length (mm): 33.6 ● Boss diameter (mm): 48 ● Boss length (mm): 18 ● Tooth width b (mm): 14 ● Assembly distance A (mm): 50 ● Reference circle diameter d (mm): 75 ● Tooth tip circle diameter: 76.74 ● Hole length: 30 ● Tap: M5 ● Keyway: 6 × 2.8 ● Pressure surface diameter: 48.01 ● Tooth width b (mm): 14 ● Assembly distance A (mm): 50 ● Gear precision: JIS B 1704: 1978: Grade 4 ●Tooth surface hardness: 55 to 60 HRC ●Tooth shape: Gleason ●Surface treatment: None ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Heat treatment: Full carburizing and hardening ●Twist angle: 35 ●Can additional processing be done: No Material/Finish: ●SCM415 Note: ●Sold as a single piece, not a set.
