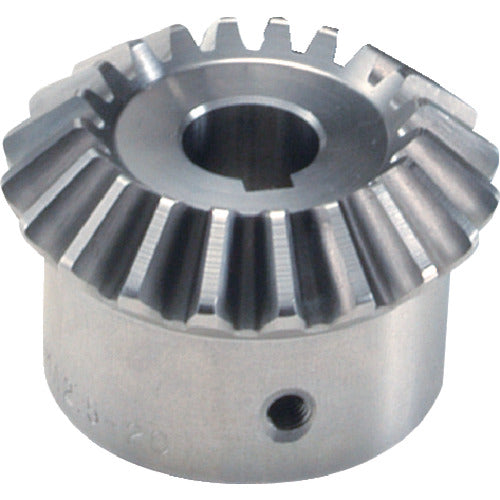

KHK Finished Stainless Steel Miter Wheel SUMA1-25 SUMA1-25 1 pc

Catalog number: SUMA1-25 Features: * Stainless steel miter gears that can be used without additional processing. Applications: * Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 25 ●Pitch circle diameter (mm): 25 ●Assembly distance (mm): 23 ●Hole diameter (mm): 6 ●Total length (mm): 15.16 ●Tooth width (mm): 6 ●Shape: BT ●Tooth tip circle diameter (mm): 26.41 ●Boss diameter (mm): 20 ●Boss length (mm): 8 ●Hole length (mm): 14 ●Tooth ratio: 1 ●Thread hole: M4 ●Gear precision: JIS B1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Material: SUS303 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: No Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not as a set.
