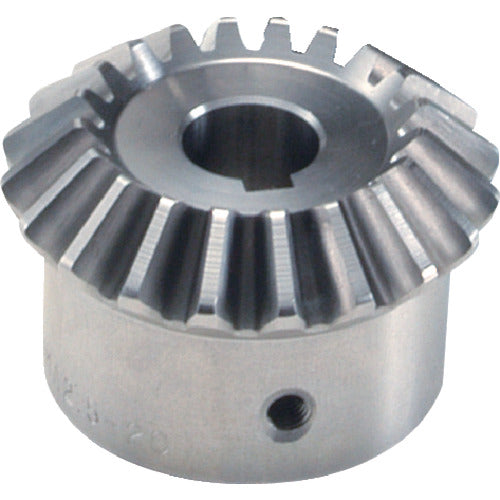

KHK Finished Stainless Steel Miter Wheel SUMA1.5-20 SUMA1.5-20 1 pc

Catalog number: SUMA1.5-20 Features: * Stainless steel miter gears that can be used without additional processing. Applications: * Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 20 ●Pitch circle diameter (mm): 30 ●Assembly distance (mm): 30 ●Hole diameter (mm): 8 ●Total length (mm): 21.24 ●Tooth width (mm): 8 ●Shape: BT ●Tooth tip circle diameter (mm): 32.12 ●Boss diameter (mm): 26 ●Boss length (mm): 13 ●Hole length (mm): 19 ●Tooth ratio: 1 ●Thread hole: M4 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Material: SUS303 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: No Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not as a set.
