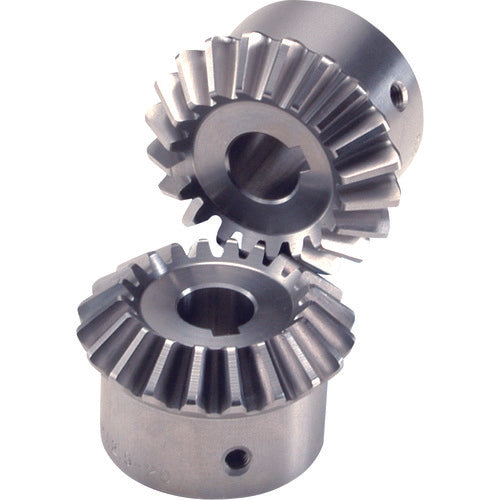

KHK Finished Stainless Steel Miter Wheel SUMA2.5-25 SUMA2.5-25 1 pc

Catalog number: SUMA2.5-25 Features: ● Stainless steel miter gears that can be used without additional processing. Applications: ● Power transmission gears. Specifications: ●Module: 2.5 ●Number of teeth: 25 ●Pitch circle diameter (mm): 62.5 ●Assembly distance (mm): 50 ●Hole diameter (mm): 16 ●Total length (mm): 30.41 ●Tooth width (mm): 15 ●Shape: BK ●Tooth tip circle diameter (mm): 66.04 ●Boss diameter (mm): 55 ●Boss length (mm): 15 ●Hole length (mm): 26 ●Tooth ratio: 1 ●Key groove: 5 x 2.3 ●Thread hole: M5 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Material: SUS303 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: No Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not as a set.
