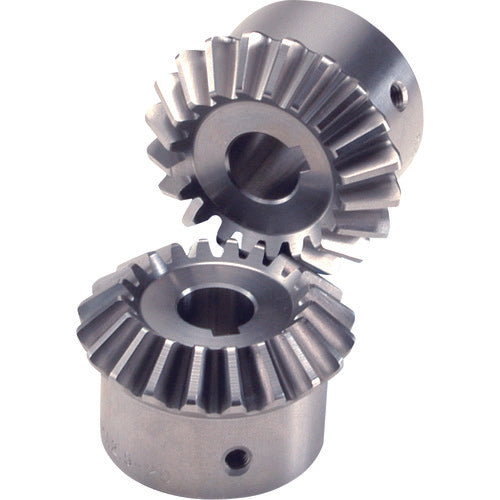

KHK Finished Stainless Steel Miter Wheel SUMA4-25 SUMA4-25 1 pc

Catalog number: SUMA4-25 Features: * Stainless steel miter gears that can be used without additional processing. Applications: * Power transmission gears. Specifications: ●Module: 4 ●Number of teeth: 25 ●Pitch circle diameter (mm): 100 ●Assembly distance (mm): 80 ●Hole diameter (mm): 30 ●Total length (mm): 49.32 ●Tooth width (mm): 25 ●Shape: BK ●Tooth tip circle diameter (mm): 105.66 ●Boss diameter (mm): 80 ●Boss length (mm): 20 ●Hole length (mm): 43 ●Tooth ratio: 1 ●Key groove: 8 x 3.3 ●Threaded hole: M6 ●Gear precision: JIS B 1704: 1978: Class 3 ●Tooth form: Gleason ●Pressure angle: 20° ●Material: SUS303 ●Tooth surface hardness: (187HB or less) ●Surface treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: No Material/Finish: ●SUS303 Note: ●This is sold as a single piece and not as a set.
