KHK Spur Gear SS0.5-20A SS0.5-20A 1 piece

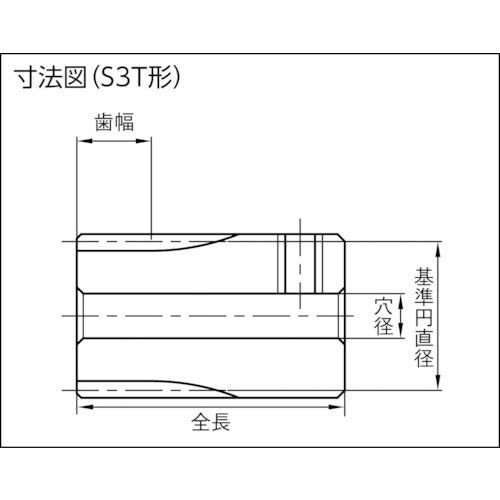

Catalog number: SS0.5-20A Features: ●A wide range of modules and numbers of teeth are available, making it low-cost and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 0.5 ●Number of teeth: 20 ●Shape: S3T ●Pitch circle diameter (mm): φ10 ●Tooth width (mm): 5 ●Hole diameter (mm): φ3 ●Total length (mm): 16 ●Boss diameter (mm): φ11 ●Tooth tip circle diameter (mm): φ11 ●Boss length (mm): 11 ●Thread hole: M3 ●Gear precision: JIS B1702-1N8 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not a set.
