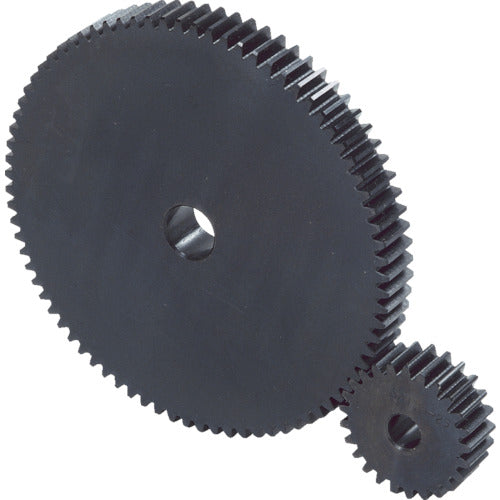

KHK Spur Gear SSA1.5-35 SSA1.5-35 1 pc

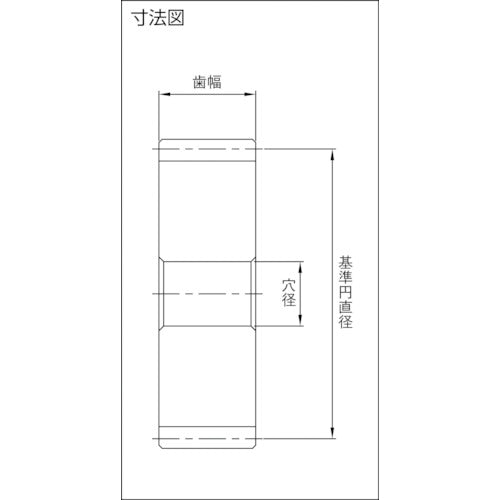

Catalog number: SSA1.5-35 Features: ●A flat-shaped spur gear with the boss cut off to reduce weight. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 35 ●Shape: S5 ●Reference circle diameter (mm): φ52.5 ●Tooth width (mm): 15 ●Hole diameter (mm): φ10 ●Total length (mm): 15 ●Tooth tip circle diameter (mm): φ55.5 ●Gear precision: JIS B1702-1N8 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (194HB or less) ●Surface treatment: Blackening ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
