KHK Spur Gear SSA1.5-70 SSA1.5-70 1 piece

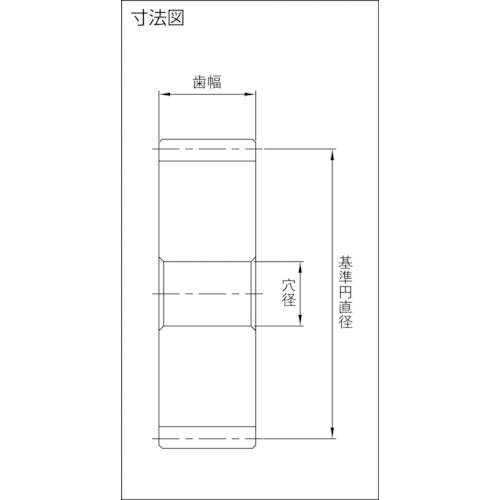

Catalog number: SSA1.5-70 Features: ● A flat-shaped spur gear with the boss cut off to reduce weight. Applications: ● Power transmission gears. Specifications: ● Module: 1.5 ● Number of teeth: 70 ● Shape: S5 ● Reference circle diameter (mm): φ105 ● Tooth width (mm): 15 ● Hole diameter (mm): φ15 ● Total length (mm): 15 ● Tooth tip circle diameter (mm): φ108 ● Gear precision: JIS B1702-1N8 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (194HB or less) ● Surface treatment: Blackening ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● S45C Note: ● This is a single item, not a set.
