KHK Spur Gear SS1-120 Regular Teeth SS1-120 1 pc

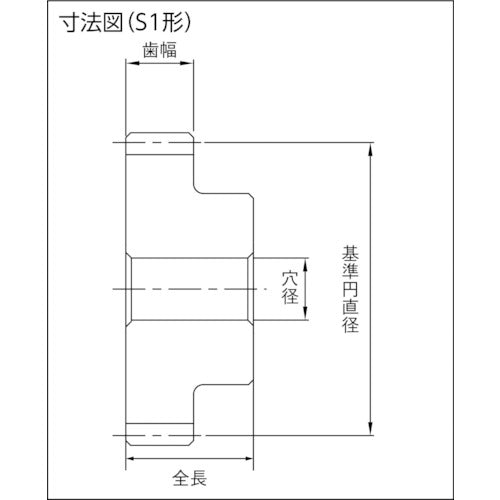

Catalog number: SS1-120 Features: ●A wide variety of modules and numbers of teeth are available, making it low-priced and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 120 ●Shape: S1 ●Reference circle diameter (mm): φ120 ●Tooth width (mm): 10 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: 122 ●Total length (mm): 20 ●Boss diameter (mm): φ50 ●Tooth tip circle diameter (mm): φ122 ●Boss length (mm): 10 ●Gear precision: JIS B1702-1N8 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
