KHK Spur Gear SS1.5-29 Regular Teeth SS1.5-29 1 pc

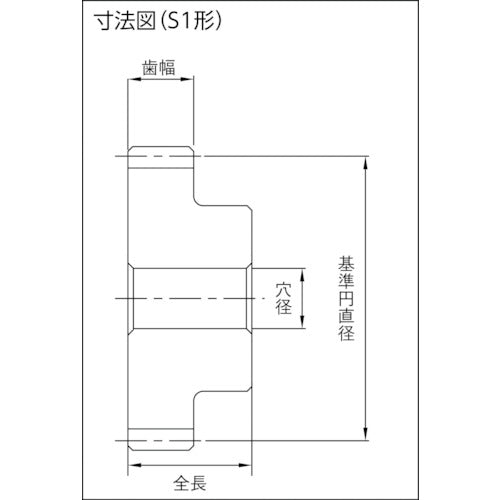

Catalog number: SS1.5-29 Features: ●A wide variety of modules and numbers of teeth are available, making them low-cost and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 29 ●Shape: S1 ●Pitch diameter (mm): φ43.5 ●Tooth width (mm): 15 ●Hole diameter (mm): φ10 ●Tooth tip circle diameter: 46.5 ●Total length (mm): 25 ●Boss diameter (mm): φ37 ●Tooth tip circle diameter (mm): φ46.5 ●Boss length (mm): 10 ●Gear precision: JIS B1702-1N8 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece and not a set.
