KHK Spur gear SS1.5-30C Regular tooth SS1.5-30C 1 piece

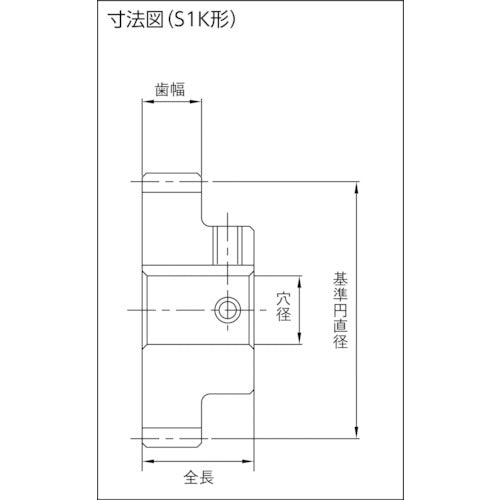

Catalog number: SS1.5-30C Features: ●A wide range of modules and numbers of teeth are available, making it low-cost and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 30 ●Shape: S1K ●Pitch circle diameter (mm): φ45 ●Tooth width (mm): 15 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: 48 ●Total length (mm): 25 ●Boss diameter (mm): φ38 ●Tooth tip circle diameter (mm): φ48 ●Boss length (mm): 10 ●Tap: M4 ●Key groove: 5 x 2.3 ●Gear precision: JIS B1702-1N8 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●Sold as a single piece, not a set.
