KHK Spur Gear SS1.5-52 Regular Teeth SS1.5-52 1 pc

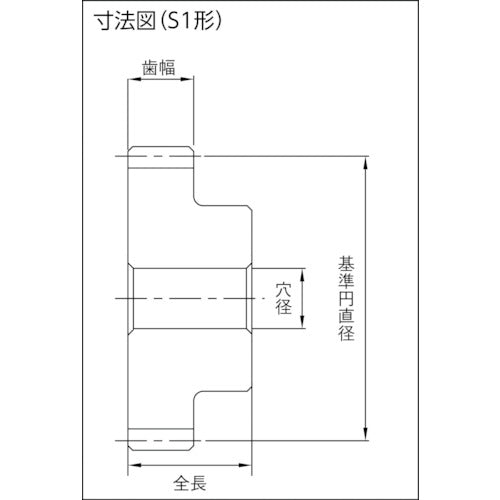

Catalog number: SS1.5-52 Features: ●A wide variety of modules and numbers of teeth are available, making it low-priced and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 52 ●Shape: S1 ●Reference circle diameter (mm): φ78 ●Tooth width (mm): 15 ●Hole diameter (mm): φ15 ●Tooth tip circle diameter: 81 ●Total length (mm): 25 ●Boss diameter (mm): φ50 ●Tooth tip circle diameter (mm): φ81 ●Boss length (mm): 10 ●Gear precision: JIS B1702-1N8 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●S45C Note: ●Sold individually, not as a set.
