KHK Spur Gear SS1.5-54 Regular Teeth SS1.5-54 1 pc

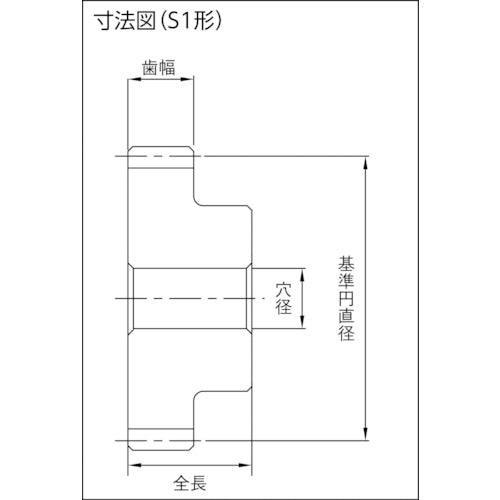

Catalog number: SS1.5-54 Features: ●A wide variety of modules and numbers of teeth are available, making it low-priced and highly versatile. ●A finished product that does not require any additional processing. Applications: ●Power transmission gears. Specifications: ●Module: 1.5●Number of teeth: 54●Shape: S1●Reference circle diameter (mm): φ81●Tooth width (mm): 15●Hole diameter (mm): φ15●Tooth tip circle diameter: 84●Total length (mm): 25●Boss diameter (mm): φ50●Tooth tip circle diameter (mm): φ84●Boss length (mm): 10●Gear precision: JIS B1702-1N8 grade●Tooth shape: Straight teeth●Pressure angle: 20°●Heat treatment: None●Tooth surface finish: Cutting●Gear cutting reference surface: Hole (H7)●Twist angle: -●Additional processing possible: Yes Material/Finish: ●S45C Note: ●Sold individually, not as a set.
