KHK Molded Spur Gear DS0.8-56 DS0.8-56 1 pc

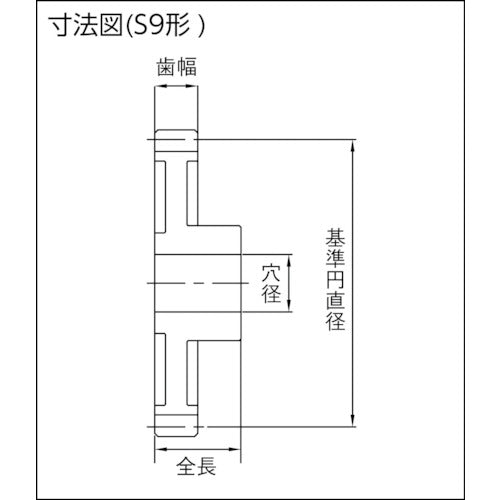

Catalog number: DS0.8-56 Features: ● Mass production offers cost benefits and can be used in light-load office equipment, etc. Applications: ● Power transmission gears. Specifications: ● Module: 0.5 ● Number of teeth: 56 ● Shape: S9 ● Reference circle diameter (mm): φ44.8 ● Tooth width (mm): 4 ● Hole diameter (mm): φ6 ● Tooth tip circle diameter: 46.4 ● Total length (mm): 10 ● Boss diameter (mm): φ14.5 ● Tooth tip circle diameter (mm): φ46.4 ● Boss length (mm): 6 ● Gear precision: JIS B1702-1N12 grade ● Tooth shape: Straight teeth ● Pressure angle: 20° ● Heat treatment: None ● Tooth surface hardness: (110-120HRR) ● Surface treatment: None ● Tooth surface finish: Molded ● Gear cutting reference surface: Hole ● Twist angle: - ● Additional processing possible: Yes Material/Finish: ● Duracon [R] (M90-44) Note: ● Duracon [R] is a registered trademark of Polyplastics Co., Ltd. in Japan and other countries. ● Sold individually, not as a set.
