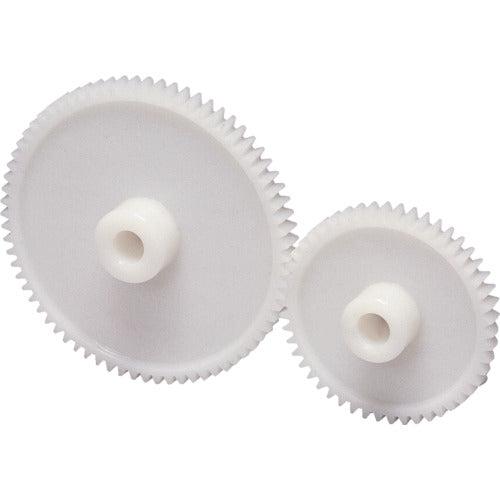

KHK Molded Spur Gear DS1-12 DS1-12 1 pc

Catalog number: DS1-12 Features: ● Mass production offers cost benefits and can be used in light-load office equipment, etc. Applications: ● Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 12 ●Shape: S8B ●Reference circle diameter (mm): φ12 ●Tooth width (mm): 6 ●Hole diameter (mm): φ4 ●Tooth tip circle diameter: 14 ●Total length (mm): 12 ●Boss diameter (mm): φ8 ●Tooth tip circle diameter (mm): φ14 ●Boss length (mm): 6 ●Gear precision: JIS B1702-1N12 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (110-120HRR) ●Surface treatment: None ●Tooth surface finish: Molded ●Gear cutting reference surface: Hole ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●Duracon [R] (M90-44) Note: ●Duracon [R] is a registered trademark of Polyplastics Co., Ltd. in Japan and other countries. ●Sold individually, not as a set.
