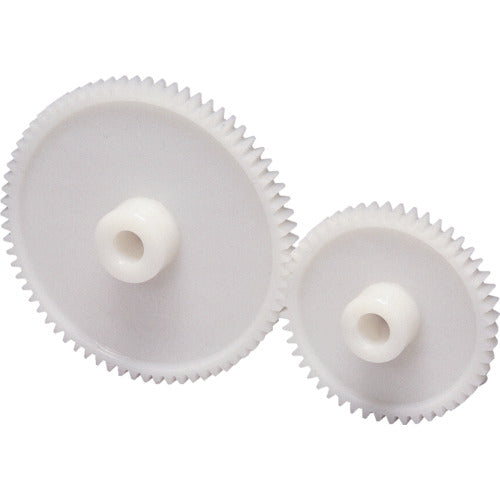

KHK Molded Spur Gear DS1-60 DS1-60 1 pc

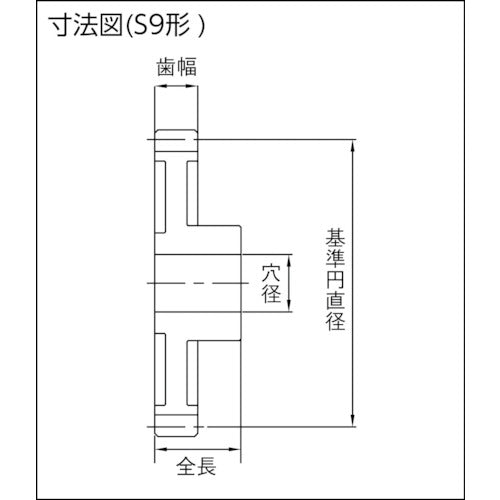

Catalog number: DS1-60 Features: ● Mass production offers cost benefits and can be used in light-load office equipment, etc. Applications: ● Power transmission gears. Specifications: ●Module: 1 ●Number of teeth: 60 ●Shape: S9 ●Reference circle diameter (mm): φ60 ●Tooth width (mm): 6 ●Hole diameter (mm): φ8 ●Tooth tip circle diameter: 62 ●Total length (mm): 14 ●Boss diameter (mm): φ18 ●Tooth tip circle diameter (mm): φ62 ●Boss length (mm): 8 ●Gear precision: JIS B1702-1N12 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface hardness: (110-120HRR) ●Surface treatment: None ●Tooth surface finish: Molded ●Gear cutting reference surface: Hole ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●Duracon [R] (M90-44) Note: ●Duracon [R] is a registered trademark of Polyplastics Co., Ltd. in Japan and other countries. ●Sold individually, not as a set.
