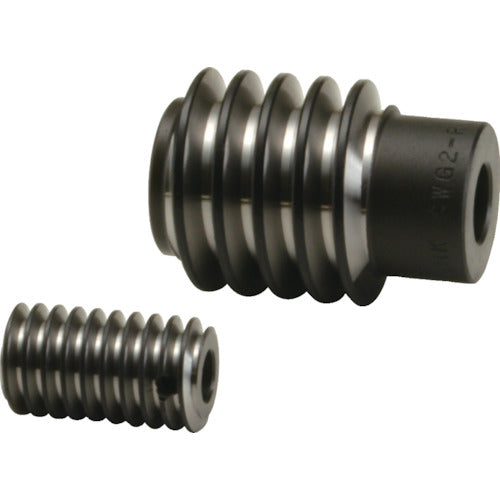

KHK Geared Worm SWG1.5-R2 SWG1.5-R2 1 pc

Catalog number: SWG1.5-R2 Features: ● Reasonably priced ground worm. ● Tooth surface is induction hardened. Applications: ● Power transmission gears. Specifications: ● Right/Left twist: R ● Module: 1.5 ● Number of threads: 2 ● Reference circle diameter (mm): 25 ● Hole diameter (mm): 10 ● Shape: W1 ● Overall length: 40 ● Boss diameter: 20 ● Tooth tip circle diameter: 28 ● Tooth width: 30 ● Lead angle: 6°51′ ● Boss length (right): 10 ● Gear precision: KHKW001: Class 2 ● Tooth shape: Straight teeth ● Heat treatment: Induction hardening of tooth surface ● Pressure angle: 20° ● Tooth surface hardness: 50-60HRC ● Surface treatment: Blackening except for ground parts ● Tooth surface finish: Grinding ● Gear cutting reference surface: Hole (H7) ● Additional processing possible: Yes Material/Finish: ● S45C Note: ● Sold individually, not as a set.
