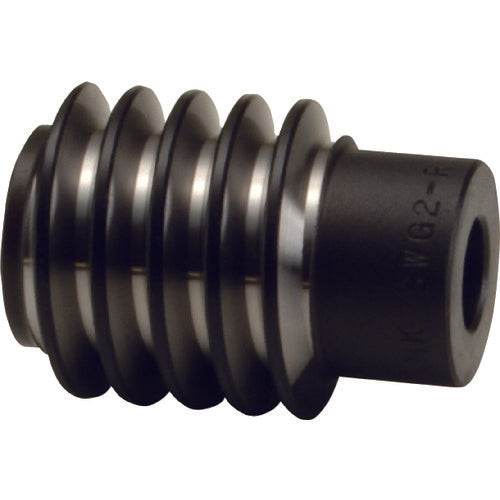

KHK Geared Worm SWG2-R1 SWG2-R1 1 pc

Catalog number: SWG2-R1 Features: * Reasonably priced ground worm. * Tooth surface is induction hardened. Applications: * Power transmission gears. Specifications: ●Twist right/left: R ●Module: 2 ●Number of threads: 1 ●Pitch circle diameter (mm): 31 ●Hole diameter (mm): 12 ●Shape: W3 ●Total length: 50 ●Boss diameter: 25 ●Tooth tip circle diameter: 35 ●Tooth width: 32 ●Lead angle: 3°41′ ●Boss length (right): 15 ●Boss length (left): 3 ●Gear precision: KHKW001: Class 2 ●Tooth form: Straight teeth ●Heat treatment: High-frequency hardening of tooth surface ●Pressure angle: 20° ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening except for ground parts ●Tooth surface finish: Grinding ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●Sold as a single piece, not a set.
