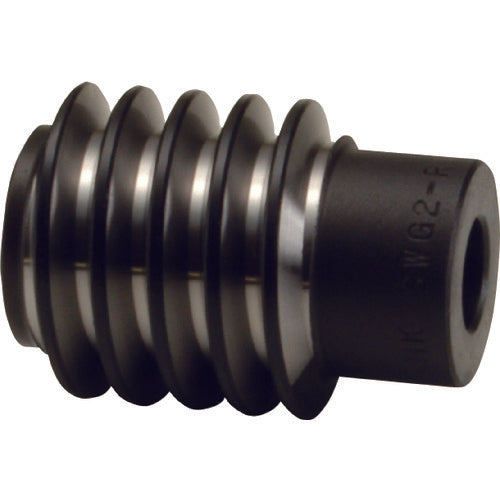

KHK Geared Worm SWG5-R2 SWG5-R2 1 pc

Catalog number: SWG5-R2 Features: ● Reasonably priced ground worm. ● Tooth surface is induction hardened. Applications: ● Power transmission gears. Specifications: ●Module: 5 ●Number of grooves: 2 ●Hole diameter (mm): 25 ●Shape: W3 ●Tooth width (mm): 85 ●Total length (mm): 120 ●Boss diameter (mm): 56 ●Lead angle: 8°08′ ●Tooth tip circle diameter: φ80 ●Hole length: 80 ●Worm twist direction and number of grooves (mm): R 2 ●Tooth width b (mm): 85 ●Reference circle diameter d (mm): 70 ●Twist direction: R ●Gear precision: KHK W 001: Class 2 ●Tooth surface hardness: 50-60 HRC ●Tooth form: Straight teeth ●Surface treatment: Blackening except for ground parts ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Heat treatment: High-frequency hardening of tooth surface ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold individually and not as a set.
