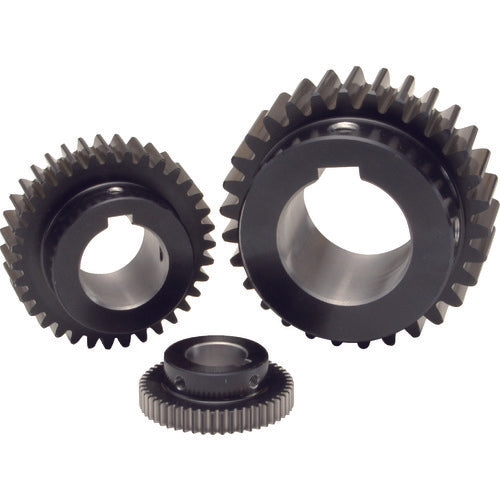

KHK Gear Spur SSG2.5-32J30 SSG2.5-32J30 1 pc

Catalog number: SSG2.5-32J30 Features: ● The teeth are hardened, but additional machining is possible. Applications: ● Power transmission gears. Specifications: ●Module: 2.5●Number of teeth: 32●Shape: S1K●Reference circle diameter (mm): 80●Tooth width (mm): 25●Hole diameter (mm): 30●Tooth tip circle diameter: 85●Total length (mm): 43●Boss diameter (mm): 70●Boss length (mm): 18●Tap: M6●Key groove: 8×3.3●Screw hole position: 9●Gear precision: Equivalent to JIS B 1702-1 N7 grade●Tooth surface hardness: 50-60HRC●Tooth shape: Straight teeth●Surface treatment: Blackening except for teeth (additional processing parts are not re-blackened.)●Pressure angle: 20°●Tooth surface finish: Grinding●Gear cutting reference surface: Hole (H7)●Heat treatment: Tooth surface high-frequency hardening Material/Finish: ●S45C Note: ●This product is a contracted product, so the manufacturer will complete it within 3 days after ordering. (Logistics is not included) ●This product cannot be canceled because it will be processed immediately after ordering. ●This is a single item sold, not a set.
