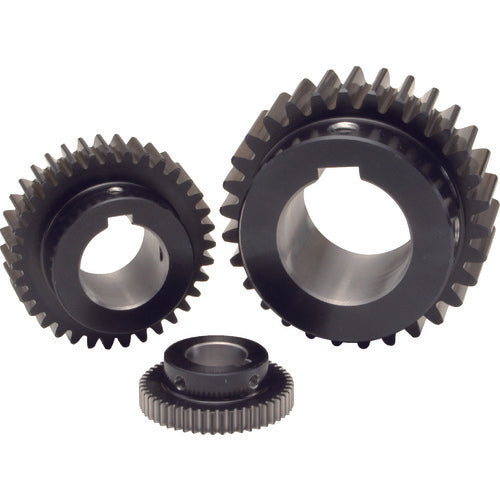

KHK Gear Spur SSG3-30J25 SSG3-30J25 1 pc

Catalog number: SSG3-30J25 Features: ● The teeth are hardened, but additional processing is possible. Applications: ● Power transmission gears. Specifications: ●Module: 3 ●Number of teeth: 30 ●Shape: S1K ●Reference circle diameter (mm): 90 ●Tooth width (mm): 30 ●Hole diameter (mm): 25 ●Tooth tip circle diameter: 96 ●Total length (mm): 50 ●Boss diameter (mm): 75 ●Boss length (mm): 20 ●Tap: M6 ●Key groove: 8 x 3.3 ●Screw hole position: 10 ●Gear precision: JIS B 1702-1 N7 grade equivalent ●Tooth surface hardness: 50-60HRC ●Tooth shape: Straight teeth ●Surface treatment: Blackening except for teeth (additional processing parts are not re-blackened.) ●Pressure angle: 20° ●Tooth surface finish: Grinding ●Gear cutting reference surface: Hole (H7) ●Heat treatment: Tooth surface high-frequency hardening Material/Finish: ●S45C Note: ●This product is a contracted product, so the manufacturer will complete it within 3 days after ordering. (Logistics is not included) ●This product cannot be canceled because it will be processed immediately after ordering. ●This is a single item sold, not a set.
