KHK Sintered Miter Gear LM1.5-20 LM1.5-20 1 pc

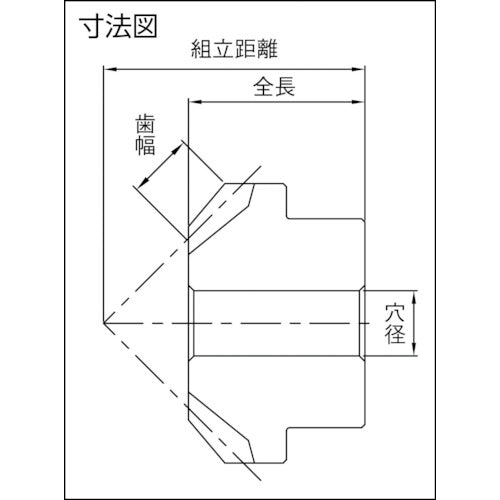

Catalog number: LM1.5-20 Features: ●Low price achieved by taking advantage of the mass production effect of the sintering process. ●Compact and lightweight product. Applications: ●Power transmission gears. Specifications: ●Module: 1.5 ●Number of teeth: 20 ●Pitch diameter (mm): φ30 ●Assembly distance (mm): 30 ●Hole diameter (mm): φ6 ●Total length (mm): 21 ●Tooth width (mm): 8.48 ●Shape: B1 ●Tooth tip diameter (mm): φ32.12 ●Boss diameter (mm): φ26 ●Boss length (mm): 9 ●Hole length (mm): 21 ●Tooth ratio: 1 ●Gear precision: JIS B1704: 1978: Class 5 ●Tooth form: Gleason ●Pressure angle: 20° ●Heat treatment: None ●Tooth ratio: 1 ●Tooth surface hardness: (70-95 HRB) ●Surface treatment: Steam treatment ●Tooth surface finish: Sintered ●Gear cutting reference surface: Hole (H8) ●Can additional processing be performed: Yes Material/Finish: ●SMF5040 Note: ●This is sold as a single piece and not as a set.
