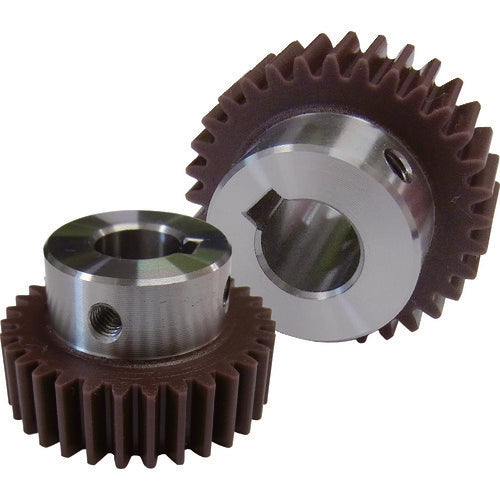

KHK fused spur gear NSU3-48J22 NSU3-48J22 1 piece

Catalog number: NSU3-48J22 Features: * The S45C boss is fused and fixed to the nylon teeth to improve the safety of key grooves, taps, etc. Applications: * Power transmission gears. Specifications: ● Module: 3 ● Number of teeth: 48 ● Shape: S1K ● Reference circle diameter (mm): 144 ● Tooth width (mm): 30 ● Hole diameter (mm): 22 ● Tooth tip circle diameter: 150 ● Total length (mm): 47 ● Boss diameter (mm): 70 ● Boss length (mm): 17 ● Tap: M5 ● Key groove: 6 x 2.8 ● Screw hole position: 8.5 ● Gear precision: JIS B 1702-1 N9 grade equivalent ● Tooth surface hardness: (115-120HRR) ● Tooth shape: Straight teeth ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Heat treatment: None ● Additional processing possible: No Material / Finish: ● MC602ST Note: ● This product is a contracted product, so the manufacturer will complete it within 3 days after ordering. (Logistics is not included) ● This product cannot be canceled because it will be processed immediately after ordering. ●This is a single item sold, not a set.
