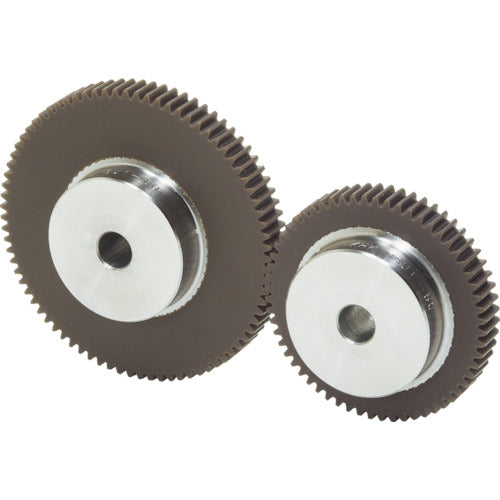

KHK fused spur gear NSU3-22, regular teeth NSU3-22, 1 piece

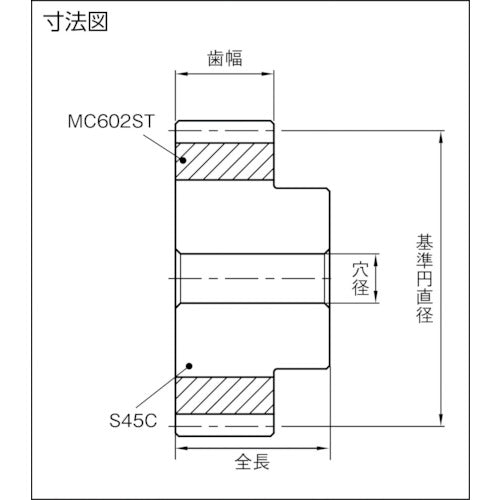

Catalog number: NSU3-22 Features: ●The boss of S45C is fused to the nylon teeth to improve the safety of key grooves, taps, etc. Applications: ●Power transmission gears. Specifications: ●Module: 3 ●Number of teeth: 22 ●Shape: S1 ●Reference circle diameter (mm): φ66 ●Tooth width (mm): 30 ●Hole diameter (mm): φ12 ●Tooth tip circle diameter: 72 ●Total length (mm): 47 ●Boss diameter (mm): φ38 ●Tooth tip circle diameter (mm): φ72 ●Boss length (mm): 17 ●Gear precision: JIS B1702-1N9 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●MC602ST Note: ●This is a single item, not a set.
