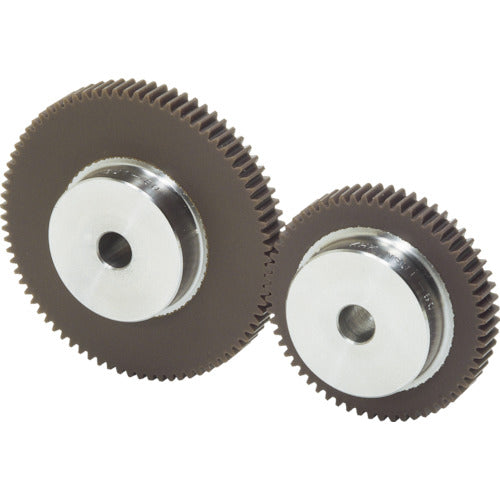

KHK fused spur gear NSU3-68, regular teeth NSU3-68, 1 piece

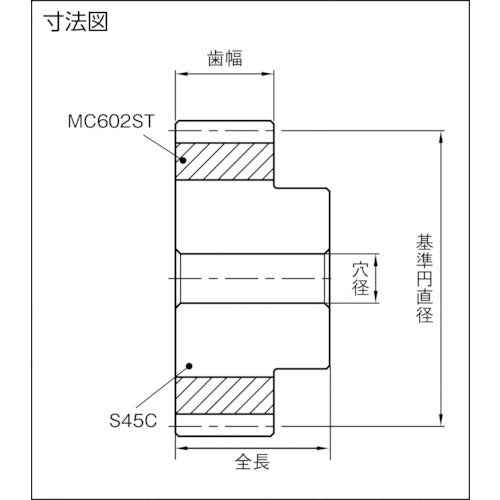

Catalog number: NSU3-68 Features: ●The boss of S45C is fused to the nylon teeth to improve the safety of key grooves, taps, etc. Applications: ●Power transmission gears. Specifications: ●Module: 3 ●Number of teeth: 68 ●Shape: S1 ●Reference circle diameter (mm): φ204 ●Tooth width (mm): 30 ●Hole diameter (mm): φ20 ●Tooth tip circle diameter: 210 ●Total length (mm): 47 ●Boss diameter (mm): φ70 ●Tooth tip circle diameter (mm): φ210 ●Boss length (mm): 17 ●Gear precision: JIS B1702-1N9 grade ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Heat treatment: None ●Tooth surface finish: Cutting ●Gear cutting reference surface: Hole (H7) ●Twist angle: - ●Additional processing possible: Yes Material/Finish: ●MC602ST Note: ●This is a single item, not a set.
