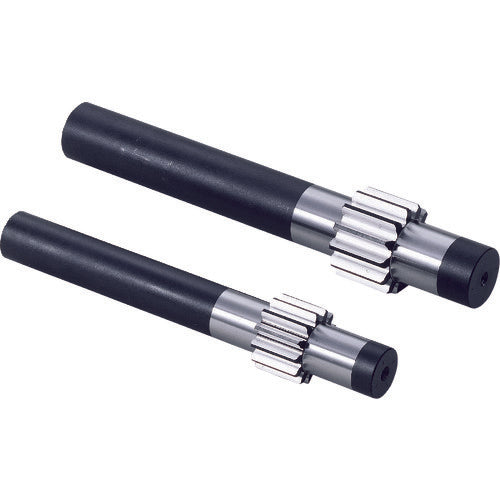

KHK Shaft-mounted spur gear SSGS3-13 SSGS3-13 1 pc

Catalog number: SSGS3-13 Features: ●A spur gear with a shaft and ground teeth. If the shaft is machined, it can be set directly on the bearing. Applications: ●Power transmission gears. Specifications: ●Module: 3 ●Number of teeth: 13 ●Shape: S7 ●Reference circle diameter d (mm): 39 ●Tooth width b (mm): 30 ●Tooth tip circle diameter: 45 ●Total length (mm): 220 ●Gear precision: JIS B 1702-1 N7 grade ●Tooth surface hardness: 50-60HRC ●Tooth shape: Straight teeth ●Surface treatment: Black dyeing except for ground parts ●Pressure angle: 20° ●Tooth surface finish: Grinding ●Gear cutting reference surface: Shaft (ground part) ●Heat treatment: Tempering, high-frequency hardening of tooth surface ●Twist angle ●Can additional processing be performed: Yes Material/Finish: ●S45C Note: ●This is a single item, not a set.
