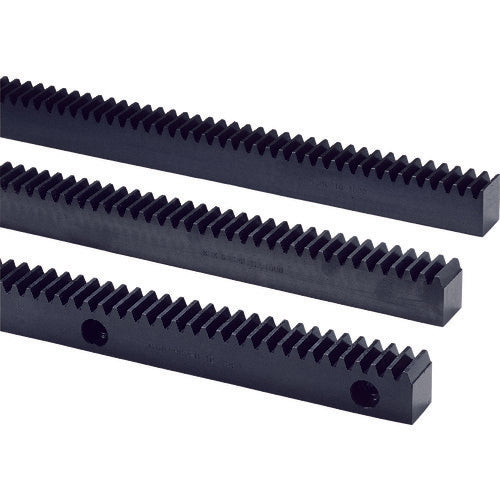

KHK CP Rack SRCP10-100 SRCP10-100 1 piece

Catalogue number: SRCP10-100 Features: ●Large range of pitches and lengths available, low price and versatile. Applications: ●Power transmission gears. Specifications: ●Module: CP10 ●Total length (mm): 98 ●Effective number of teeth: 8 ●Meshing height h” (mm): 31.82 ●Tooth width b (mm): 30 ●Height (mm): Mesh 31.82 ●Shape: R1 ●Gear precision: KHK R 001: Grade 4 ●Tooth surface hardness: (95HRB or less) ●Tooth shape: Straight teeth ●Surface treatment: Blackening ●Pressure angle: 20° ●Tooth surface finish: Cutting ●Gear cutting reference surface: Bottom surface ●Heat treatment: None ●Additional machining possible: Yes Material/Finish: ●S45C Note: ●Sold individually, not as a set.
