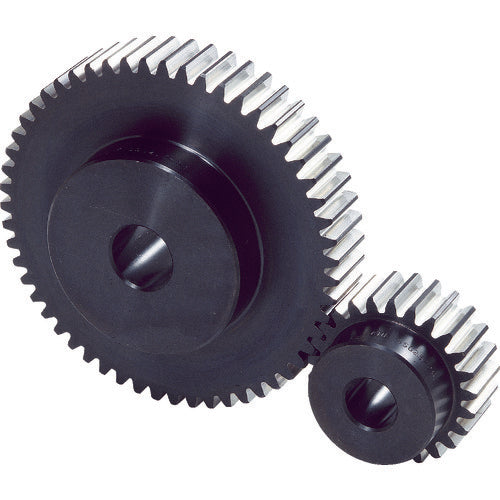

KHK CP Gear Spur Gear SSCPG5-20 SSCPG5-20 1 pc

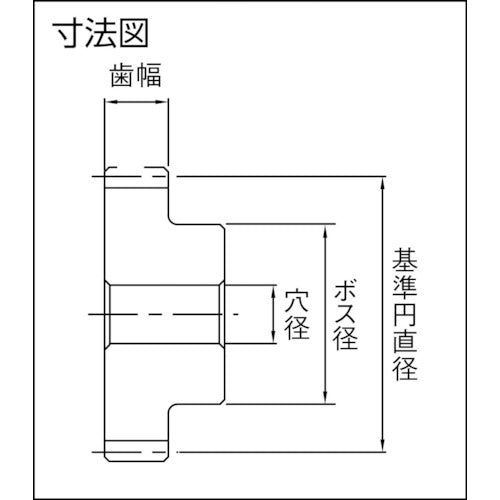

Catalog number: SSCPG5-20 Features: * Additional machining is possible with this CP spur gear, which can be used according to the design intent. Applications: * Power transmission gears. Specifications: ●Pitch (mm): 5 ●Module: CP5 (1.5915) ●Number of teeth: 20 ●Shape: S1 ●Pitch circle diameter (mm): φ31.83 ●Tooth width (mm): 15 ●Hole diameter (mm): φ8 ●Total length (mm): 30 ●Boss diameter (mm): φ25 ●Tooth tip circle diameter (mm): φ35.01 ●Boss length (mm): 15 ●Gear precision: JIS B1702-1N7 grade ●Tooth form: Straight teeth ●Pressure angle: 20° ●Heat treatment: High-frequency hardening of tooth surface ●Tooth surface hardness: 50-60HRC ●Surface treatment: Blackening except for teeth ●Tooth surface finish: Grinding ●Gear cutting reference surface: Hole (H7) ●Can additional processing be done: Yes Material/Finish: ●S45C Note: ●This is sold as a single piece, not a set.
