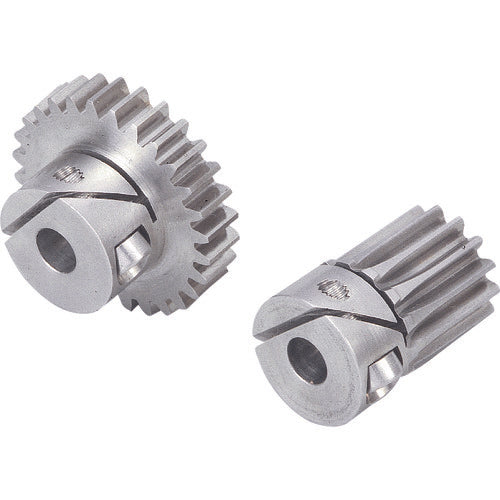

KHK F lock gear SUSF1-16 SUSF1-16 1 piece

Catalog number: SUSF1-16 Features: ● Small spur gear that is resistant to rust. ● Can be attached to the shaft with one touch. Applications: ● Gears for power transmission. Specifications: ● Module: 1 ● Number of teeth: 16 ● Shape: S3 ● Reference circle diameter d (mm): 16 ● Hole diameter (mm): 6 ● Tooth width b (mm): 8 ● Tooth tip circle diameter: 18 ● Total length (mm): 25 ● Boss diameter (mm): 17 ● Boss length (mm): 10 ● Tap: M3 ● Gear precision: JIS B 1702-1 N8 grade ● Tooth surface hardness: (187HB or less) ● Tooth shape: Straight teeth ● Surface treatment: None ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole (H7) ● Heat treatment: None ● Twist angle ● Additional processing possible: No Material/Finish: ● Stainless steel (SUS303) Note: ● Sold individually, not as a set.
