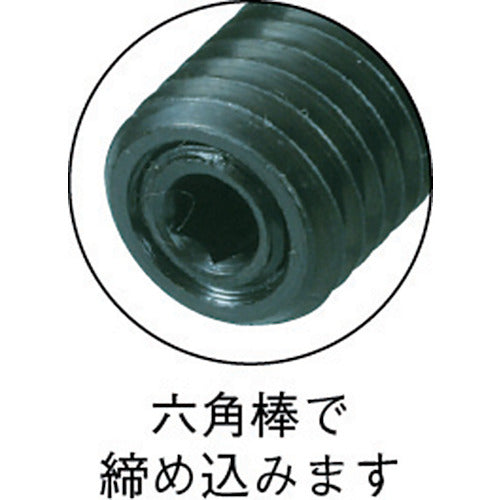

Catalog number: PL24 Features: ● A spring is built into the threaded body, and the center pin is stroked and positioned by the pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 80.0 to 160.0 ● Thread dimensions: M24 x 3.00 ● Stroke (mm): 10.0 ● Total length (mm): 52 ● Center pin diameter (mm): 12.0 ● Heat resistance temperature (℃): 100 Material/Finish: ● Body: Steel ● Center pin: Steel
