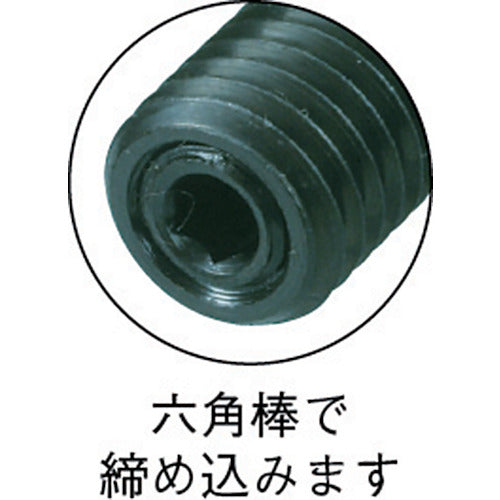

Catalog number: PL3 Features: ● A spring is built into the threaded body, and the center pin is stroked and positioned by the pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 0.5 to 3.0 ● Thread dimensions: M3 x 0.50 ● Stroke (mm): 1.5 ● Total length (mm): 10 ● Center pin diameter (mm): 1.0 ● Heat resistance temperature (℃): 100 Material/Finish: ● Body: Steel ● Center pin: Steel
