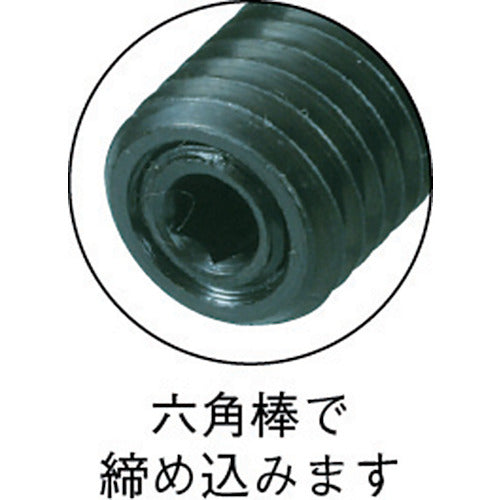

Catalog number: PL4 Features: ● A spring is built into the threaded body, and the center pin is stroked and positioned by the pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 5.0-16.0 ● Thread dimensions: M4 x 0.70 ● Stroke (mm): 1.5 ● Total length (mm): 15 ● Center pin diameter (mm): 1.5 ● Heat resistance temperature (℃): 100 Material/Finish: ● Body: Steel ● Center pin: Steel
