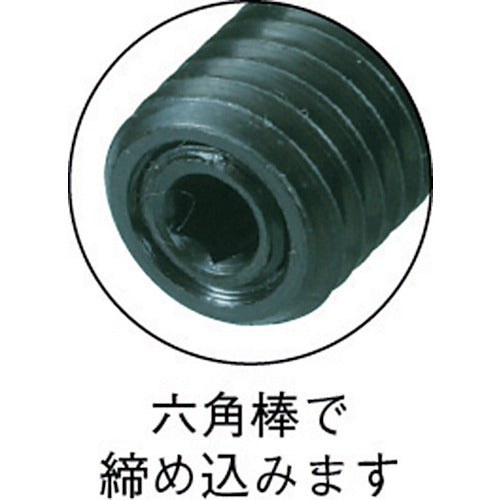

Catalog number: PL5 Features: ● A spring is built into the threaded body, and the center pin is stroked and positioned by the pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 6.0-20.0 ● Thread dimensions: M5 x 0.80 ● Stroke (mm): 2.3 ● Total length (mm): 18 ● Center pin diameter (mm): 2.4 ● Heat resistance temperature (℃): 100 Material/Finish: ● Body: Steel ● Center pin: Steel
