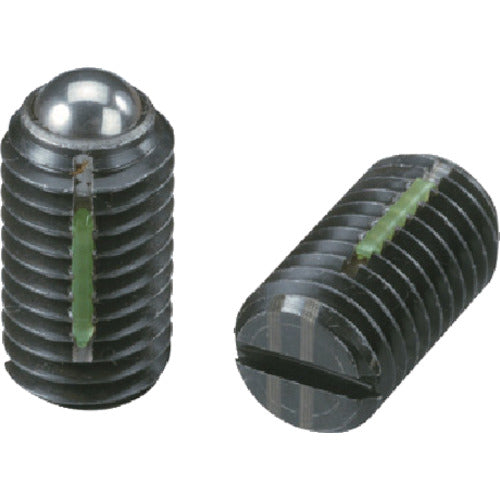

kipp ball plunger thread diameter M5 x 0.80 LBSTH5 1 piece

Catalog number: LBSTH5 Features: ● A spring is built into the screw body, and the ball is stroked and positioned by pressure. ● The long lock prevents loosening. Specifications: ● Load (N): 19.0-30.0 ● Stroke (mm): 0.9 ● Pole diameter (mm): 3.0 ● Screw diameter: M5 x 0.80 ● Body dimensions (mm) length: 12 Materials/Finish: ● Body: SUM22L Black dyed ● Coil spring: SWPA ● Ball: SUJ2 HRC56-60 ● Long lock: Polyamide Notes: ● Shipping fee to Hokkaido and Okinawa is 1,500 yen
