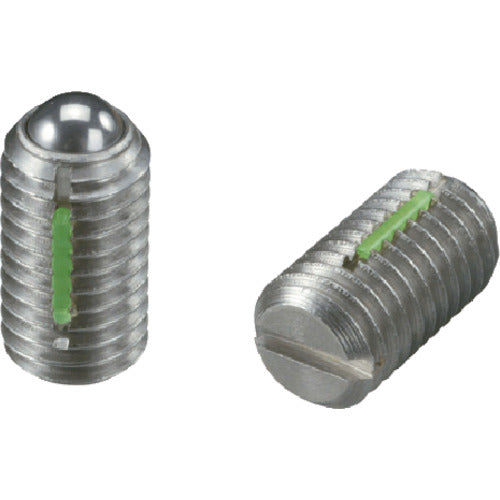

kipp ball plunger thread diameter M6 x 1.00 LBSU6 1 piece

Catalog number: LBSU6 Features: ● A spring is built into the screw body, and the ball is stroked and positioned by pressure. ● The long lock prevents loosening. Specifications: ● Load (N): 9.0-13.0 ● Stroke (mm): 1.0 ● Pole diameter (mm): 3.5 ● Body dimensions (mm) length: 14 ● Screw diameter: M6 x 1.00 Material/Finish: ● Body: SUS303 ● Coil spring: SUS302WPA ● Ball: SUS420 HRC55 ● Long lock: Polyamide Note: ● Shipping fee to Hokkaido and Okinawa is 1,500 yen
