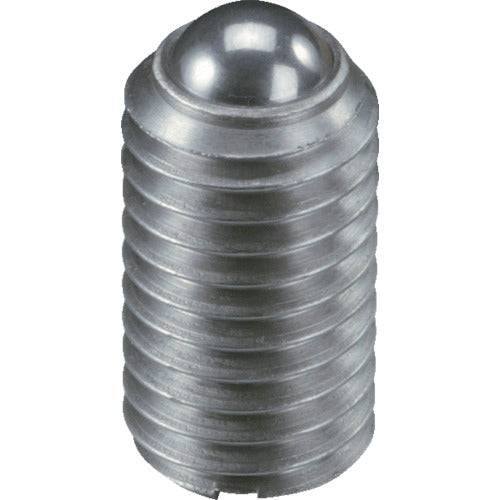

Catalog number: BSU16 Features: ● A spring is built into the screw body, and the ball is stroked and positioned by pressure. Applications: ● Positioning parts such as indexing and stoppers. Specifications: ● Load (N): 65.0 to 125.0 ● Screw dimensions: M16 x 2.00 ● Stroke (mm): 3.5 ● Total length (mm): 24 ● Pole diameter (mm): 10 ● Heat resistance temperature: 180°C Materials/Finish: ● Body: Stainless steel (SUS303) ● Ball: Stainless steel (SUS420)
